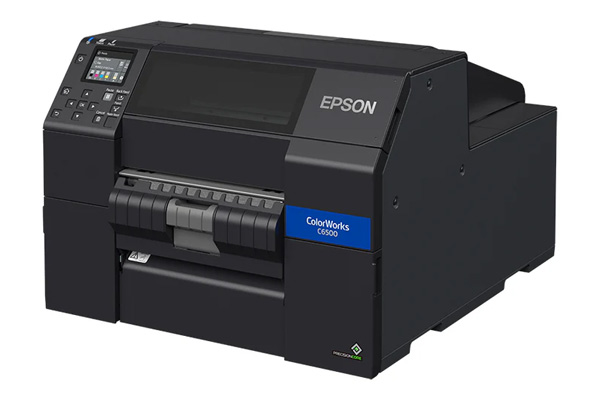

Epson ColorWorks CW-C6500



Epson ColorWorks CW-C6500

ColorWorks CW-C6500


  • Brand:Epson
  • Printer Model:ColorWorks CW-C6500 (A/P Models)
  • Category:8-inch Industrial Color Label Printer
  • Colors:4 Individual Cartridges (CMYK - Gloss or Matte Black)
  • Print Width:Up to 8.34" (211.8mm)

Industrial Expansion: Epson CW-C6500

The ColorWorks CW-C6500 series extends the capabilities of on-demand color labeling to large-format applications. Specifically designed as a color upgrade for black-and-white thermal transfer printers, the C6500 provides high-speed, 8-inch wide printing with the rugged reliability required for industrial chemical, manufacturing, and logistics environments.

Overview

• Versatile 8-inch print width for large-format labels
• Seamless thermal transfer replacement with native ZPL II support
• High-resolution output up to 1200 dpi for crisp text and photo-quality imagery
• Available in two configurations: Auto-Cutter (C6500A) or Peeler (C6500P)
• PrecisionCore® TFP® technology for ultra-sharp barcodes and line work
• Remote management tools for fleet-wide configuration and monitoring
• Durable pigment-based inks for BS-5609 certified chemical labels
• Large media capacity with support for 6" O.D. rolls
• Compatible with SAP®, Windows®, Mac®, and Linux®

ColorWorks CW-C6500 Specifications


Print & Media Details

Printing Technology:
PrecisionCore TFP with Nozzle Verification Technology
Print Resolution:
Up to 1200 dpi x 1200 dpi
Print Width:
8.34" (211.8mm) max.
Print Speed:
Up to 5 inches per second (300 x 600 dpi)
Media Width:
Roll feed: 1.0" – 8.5" (25.4 – 215.9mm)
Fan fold: 2.0" – 8.5" (50.8 – 215.9mm)
Media Type:
Plain paper, matte paper, synthetic label, gloss paper, gloss film, wristbands
Thickness:
0.0033" – 0.009" (0.084 – 0.229mm)
Internal Roll Size:
O.D. 6.0" (152.4mm) max.
Core diameter: 3" (76mm)
Sensors:
Gap, black mark, media cut
Finishing Options:
C6500A: Auto-cutter
C6500P: Built-in Peeler

Ink & Connectivity

Ink Type:
UltraChrome® DL Pigment Ink (Individual cartridges)
Ink Configuration:
SJIC35P(C) Cyan
SJIC35P(M) Magenta
SJIC35P(Y) Yellow
SJIC35P(BK) Gloss Black OR (MK) Matte Black
Interface:
Ethernet 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 High-speed
Printer Language:
ESC/Label, ZPL II Interface
Barcode Support:
UPC-A, Code 39, ITF, Code 128, GS1-128, GS1 DataBar, PDF417, QR Code, DataMatrix, and more.
Remote Management:
Epson Device Admin, Web Config, Deployment Tool

General & Power

Safety Approvals:
UL60950-1/CSA C22.2 No. 60950-1, FCC Class A
Rated Voltage:
AC 100 - 240 VAC (50-60 Hz)
Power Consumption:
Printing: Approx. 39.4 W
Standby: Approx. 7.51 W
Operating Systems:
Windows 10, 8.1, 7 SP1; Windows Server 2019-2008 R2; macOS 10.9.5 or later; Linux
Temperature (Operating):
5 to 35 °C (41 to 95 °F)
Humidity (Operating):
20 – 80% RH
Dimensions (W x D x H):
17.3" x 20.3" x 12.8" (C6500A)
Weight (without ink):
Approx. 57.3 lbs (26.0 kg)
