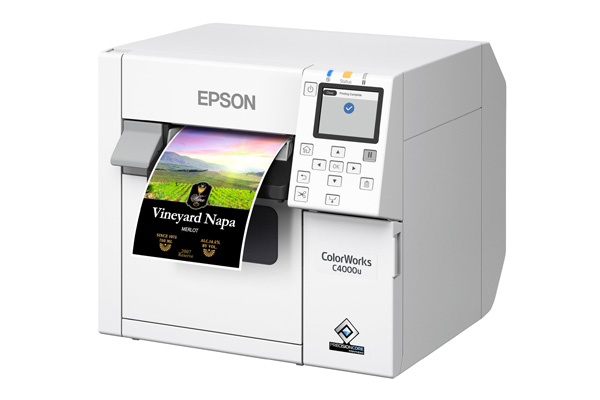

Epson ColorWorks CW-C4000



Epson ColorWorks CW-C4000

ColorWorks CW-C4000

  • Brand:Epson
  • Printer Model:ColorWorks CW-C4000
  • Category:Desktop Color Inkjet Label Printer
  • Colors:4 Individual Cartridges (CMYK - Gloss or Matte Black options)
  • Print Width:Up to 4.25" (108mm)

Next-Generation Precision: Epson CW-C4000

The Epson ColorWorks CW-C4000 delivers powerful connectivity and remarkable image quality in a compact footprint. Engineered for reliability in demanding commercial environments, it allows businesses to print high-resolution, photo-quality labels on-demand with native ZPL II support.

Overview

• High-resolution printing up to 1200 x 1200 dpi with variable droplet size
• PrecisionCore® TFP® printhead technology for ultra-sharp text and barcodes
• Fast print speeds of up to 4 inches per second
• 2.7" full-color LCD screen for simplified status monitoring and settings
• Native ZPL II capability for seamless integration into existing workflows
• Compatible with Windows®, Mac®, and Linux® operating systems
• Remote printer management tools for high-efficiency fleet control
• Optional Wi-Fi® connectivity for flexible, cable-free deployment
• BS-5609 certified for GHS compliance labeling
• Compact, dust- and water-resistant design built for durability

ColorWorks CW-C4000 Technical Specifications

Print & Media Details

Printing Technology:
PrecisionCore TFP Inkjet Technology, Nozzle Verification Technology
Max Print Resolution:
Up to 1200 dpi x 1200 dpi
Print Width:
4.25" (108mm) max.
Print Speed (Max Speed):
Up to 3.94 ips (100 mm/sec) at 300 x 600 dpi
Media Width:
Roll feed: 1.0" – 4.41" (25.4 – 112mm)
Fan fold: 2.0" – 4.41" (50.8 – 112mm)
Media Type:
Plain paper, matte paper, synthetic label, gloss paper, gloss film, wristbands
Thickness:
0.0033" – 0.009" (0.084 – 0.229mm)
Internal Roll Size:
O.D. 4.0" (101.6mm) max.
Core diameter: 1.75" – 2.25" (44 – 57mm)
Sensors:
Gap, black mark, media cut
Cutter Life:
Up to 1.5 million cuts (paper liner)

Ink & Connectivity

Ink Type:
UltraChrome® DL Pigment Ink (50 mL cartridges)
Ink Configuration:
SJIC41P(C) Cyan
SJIC41P(M) Magenta
SJIC41P(Y) Yellow
SJIC41P(BK) Gloss Black OR (MK) Matte Black
Standard Connectivity:
USB 2.0 High-speed, Ethernet 1000BASE-T/100BASE-TX/10BASE-T
Wireless:
Optional Wi-Fi® Dongle (802.11 a/b/g/n/ac)
Printer Language:
ESC/Label, ZPL II Interface
Barcode Support:
Full range of 1D and 2D codes including DataMatrix, QR Code, Aztec Code, and GS1 DataBar

General & Power

Dimensions (W x D x H):
12.2" x 11.1" x 11.2" (310 x 283 x 285 mm)
Weight (without ink):
Approx. 28.7 lbs (13 kg)
Operating Systems:
Windows 11, 10, 8.1; Windows Server 2022-2012 R2; macOS 10.9.5 or later; Linux
Rated Voltage:
AC 100 - 240 VAC (50-60 Hz)
Power Consumption:
Printing: 28.2 W (average)
Standby: 2.6 W
Off state: 0.13 W
Temperature (Operating):
5 to 35 °C (41 to 95 °F)
Humidity (Operating):
20 – 80% RH
Safety Standards:
UL1950/CSA C22.2 No.950, TUV, GOST-R
